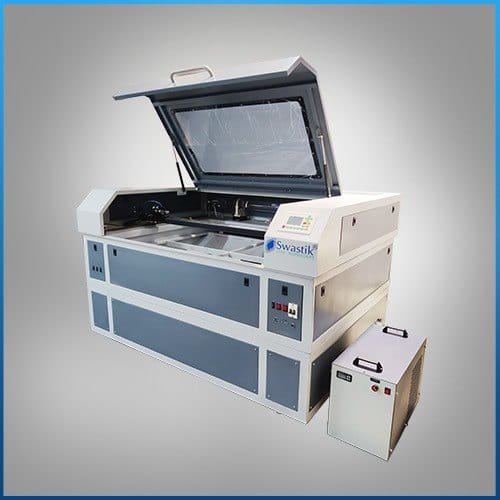

Co2 Cutting Machine

Name: Co2 Cutting Machine
Brand: SWASTIK LASER TECHNOLOGIES
Price: 325000.00 INR
Availability: InStock

Price 325000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Co2 Cutting Machine Specification

Usage & Applications
Cutting and engraving non-metal materials in signage, advertising, packaging, textile, art & crafts

Technology
CO2 Laser

Working Area
1300 x 900 mm

Power
100W / 130W / 150W (optional)

Phase
Single Phase

Product Type
CO2 Cutting Machine

Laser Type
CO2 Laser

Material
Other

Cutting Thickness
0.5 mm to 20 mm (depends on material and power)

Cutting Area
1300 mm x 900 mm (customizable)

Cutting Speed
0-1000 mm/s (material dependent)

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
Laser Cut/ Ruida RDCAM

Graphic Format Supported
AI, CDR, PLT, DXF, BMP, JPG

Voltage
220V / 50Hz / 60Hz

Weight (kg)
350 kg approx.

Dimension (L*W*H)
1900 mm x 1400 mm x 1100 mm

Capacity
Standard / As per user requirement

Feature
High precision, easy operation, stable performance

Color
White & Grey

Max Motion System Speed
1500 mm/s

Alarm System
Yes (Water flow and protective covers)

Relative Humidity
5-95% (non-condensing)

Focusing Method
Motorized / Manual

Drive System
Stepper Motor

Exhaust System
Built-in with external piping

Supported OS
Windows XP/7/8/10

Positioning Accuracy
0.01 mm

Laser Source Type
Glass Tube CO2

Operating Temperature
5-45C

Interface
USB / Ethernet

Work Table Type
Honeycomb/ Knife Blade

Co2 Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10-15 Days

About Co2 Cutting Machine

Utilise our popular Co2 Cutting Machine, packed with invincible technology and pivotal features for precision and reliability. Experience immaculate cutting performance with a Max Motion System Speed of 1500 mm/s, powered by a robust Glass Tube CO2 Laser. Its advanced stepper motor drive, DSP-controlled system, and immaculate positioning accuracy ensure flawless results. Catering to various materials, this automatic machine supports versatile applications and prominent software formats. Avail the best deal to enhance productivity and deliver professional-grade output for signage, packaging, crafts, and more.

Special Features & Versatile Applications of the Co2 Cutting Machine

This Co2 Cutting Machine features a high-precision stepper motor drive, DSP control, and motorized/manual focusing for immaculate cutting and engraving. Its honeycomb/knife blade worktable and built-in exhaust system make it pivotal for diverse tasks. Compatible with materials such as acrylic, MDF, wood, leather, and more, it excels in signage, advertising, textile, art, and craft industries. Users benefit from its rapid speed, large customizable area, and adaptability for both cutting and engraving purposes.

Sample Availability, Certifications & Packaging of Co2 Cutting Machine

We offer shipped goods with available samples upon quotation request, ensuring customers can assess quality before bulk orders. Our Co2 Cutting Machines come with certifications verifying impeccable safety and performance standards. We supply each unit in secure, immaculate packaging designed for invincible protection during transit. For detailed packaging or certification information, or to request a sample for evaluation, contact our sales team for a comprehensive quotation tailored to your needs.

FAQ's of Co2 Cutting Machine:

Q: How does the focusing method on the Co2 Cutting Machine enhance precision?

A: The Co2 Cutting Machine offers both motorized and manual focusing methods, allowing users to efficiently adjust the laser focus. This ensures optimal cutting and engraving precision across various material thicknesses and types, improving final output quality.

Q: What materials can I use with the Co2 Cutting Machine?

A: You can process a wide range of non-metal materials, including acrylic, MDF, wood, leather, paper, fabric, plastic, rubber, and even glass (engraving only). Its adaptability makes it ideal for applications in advertising, packaging, signage, crafts, and textiles.

Q: When should I request a sample of the Co2 Cutting Machine before placing an order?

A: It is recommended to request a sample prior to bulk ordering. This allows you to assess the machine's performance, compatibility with your specific materials, and overall output quality, ensuring it meets your project requirements.

Q: Where can I install the Co2 Cutting Machine for optimal operation?

A: Install the machine in a well-ventilated environment within operating temperatures of 5-45C and non-condensing relative humidity levels between 5-95%. Its single-phase design and compact footprint make it suitable for diverse workshop or factory settings.

Q: What is the process for receiving a quotation and shipped goods?

A: To receive a quotation, contact our sales team with your required specifications. We will provide pricing, supply details, and shipping timelines. Goods are shipped in immaculate, protective packaging, and certification documents are included as required.

Q: How does the alarm system contribute to machine safety?

A: The built-in alarm system monitors water flow and protective covers, alerting users to any potential operational hazards. This pivotal safety feature helps prevent damage and ensures safe, uninterrupted machine operation.
