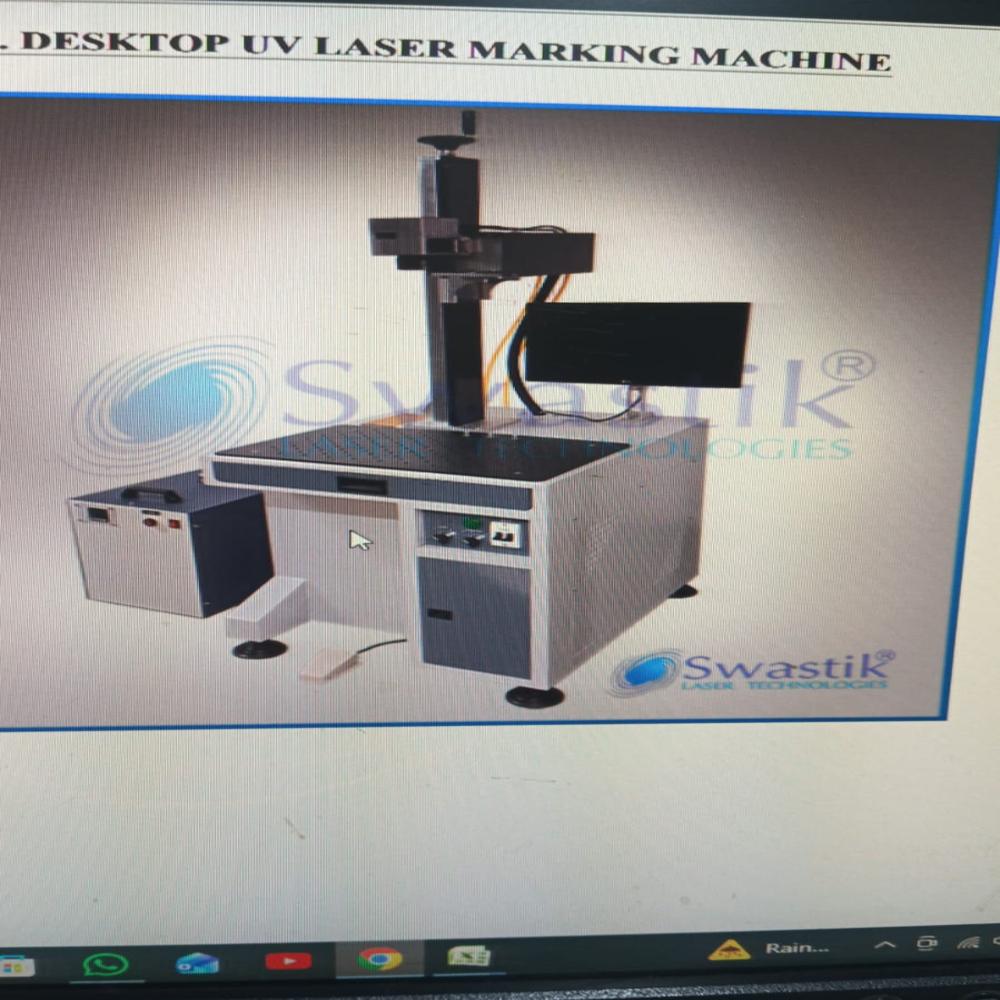

UV Laser Marking Machine

Name: UV Laser Marking Machine
Brand: SWASTIK LASER TECHNOLOGIES
Price: 425000.0 INR
Availability: InStock

Price 425000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

UV Laser Marking Machine Specification

Marking Speed
7000 mm/s

Marking Area
110 x 110 mm (Standard), optional up to 300 x 300 mm

Condition
New

Laser Type
UV Laser

Cooling Mode
Water Cooling

Product Type
Marking Machine

Control Software
EZCAD

Accuracy
0.01 mm

Color
Grey

Power
3W/5W/10W

Dimensions
600 x 700 x 1400 mm

Minimum Character Height
0.2 mm

Focusing Method
Red Light Pointer

Wavelength
355 nm

Environment
Dust-Free Room Preferred

Supported Formats
AI, PLT, DXF, BMP, JPG, TIF, PNG, etc.

Cooling System Power
800 W

Control Panel
Touchscreen/Manual

Air Humidity
75% (Non-condensing)

Supported Materials
Plastic, Glass, Crystal, Ceramic, PCB, etc.

Repeat Frequency
10-200 kHz

Minimum Line Width
0.01 mm

Power Supply
220V/110V 10%, 50/60 Hz

Operating Temperature
15C - 35C

About UV Laser Marking Machine

A UV Laser Marking Machine is a highly precise industrial etching tool that utilizes a short-wavelength ultraviolet light (typically 355 nm) to permanently mark materials through a photochemical process known as "cold marking". Unlike conventional CO2 or fiber lasers that rely on high thermal energy to melt or vaporize surfaces, a UV laser directly breaks the molecular bonds of a substrate with minimal thermal stress. This specialized mechanism eliminates the risks of burning, charring, or warping, making it the industry standard for delicate, heat-sensitive components

High-Precision, Versatile Marking

This UV Laser Marking Machine delivers remarkable accuracy with a minimum line width of 0.01 mm, making it an excellent choice for applications requiring detailed, fine markings. Its versatility extends to a broad range of substrates, including resilient plastics, fragile glass, ceramics, crystals, and printed circuit boards, ensuring consistent results across multiple industries.

Efficient and User-Friendly Operation

Equipped with a robust 800 W water cooling system and supporting both touchscreen and manual operation, the machine is designed for ease of use in industrial and laboratory settings. The integrated EZCAD control software, alongside a red light pointer for precision focusing, ensures both first-time users and experienced operators can achieve optimal results.

Flexible Format and Power Standards

This laser marker is compatible with leading graphic formats such as AI, PLT, DXF, JPG, TIF, BMP, and PNG. It is adaptable for worldwide use with a choice of 220V/110V power supplies and 50/60 Hz frequencies. Optional marking areas up to 300 x 300 mm are available for enhanced productivity on larger items.

FAQ's of UV Laser Marking Machine:

Q: How does the UV Laser Marking Machine achieve high accuracy in marking?

A: The machine operates at a wavelength of 355 nm and delivers a minimum line width of 0.01 mm, using precision optics and a red light pointer for focusing. This enables highly detailed and consistent marking on a variety of materials.

Q: What materials can be marked using this UV Laser Marking Machine?

A: You can mark plastics, glass, crystal, ceramic, PCBs, and similar materials with this machine. Its UV laser technology minimizes thermal damage, making it especially suitable for sensitive or brittle substrates.

Q: When is it necessary to use a dust-free room with this machine?

A: A dust-free room is recommended for optimal performance, especially when marking delicate electronic components or intricate designs, as airborne particles can interfere with laser precision and surface quality.

Q: Where can this machine be integrated in the production process?

A: This machine can be installed in both lab and factory settings due to its adaptable dimensions and power requirements. It's commonly used at stages requiring permanent identification, traceability, or decorative marking.

Q: What is the process for setting up and operating the machine?

A: Setup involves placing the machine in a suitable environment, connecting it to the correct power supply (220V/110V), filling the water cooling reservoir, and configuring the control panel (touchscreen or manual). Supported designs are uploaded via EZCAD software, and focusing is accomplished with the red light pointer.

Q: How does the cooling system contribute to machine longevity?

A: The 800 W water cooling system prevents overheating by efficiently dissipating heat during high-speed marking, which extends the laser source lifespan and maintains stable performance during continuous operation.

Q: What are the main benefits of using this UV Laser Marking Machine?

A: Benefits include high marking speed (up to 7000 mm/s), accuracy of 0.01 mm, compatibility with multiple file formats, support for a wide variety of materials, and user-friendly operation through both touchscreen/manual controls and advanced software.
